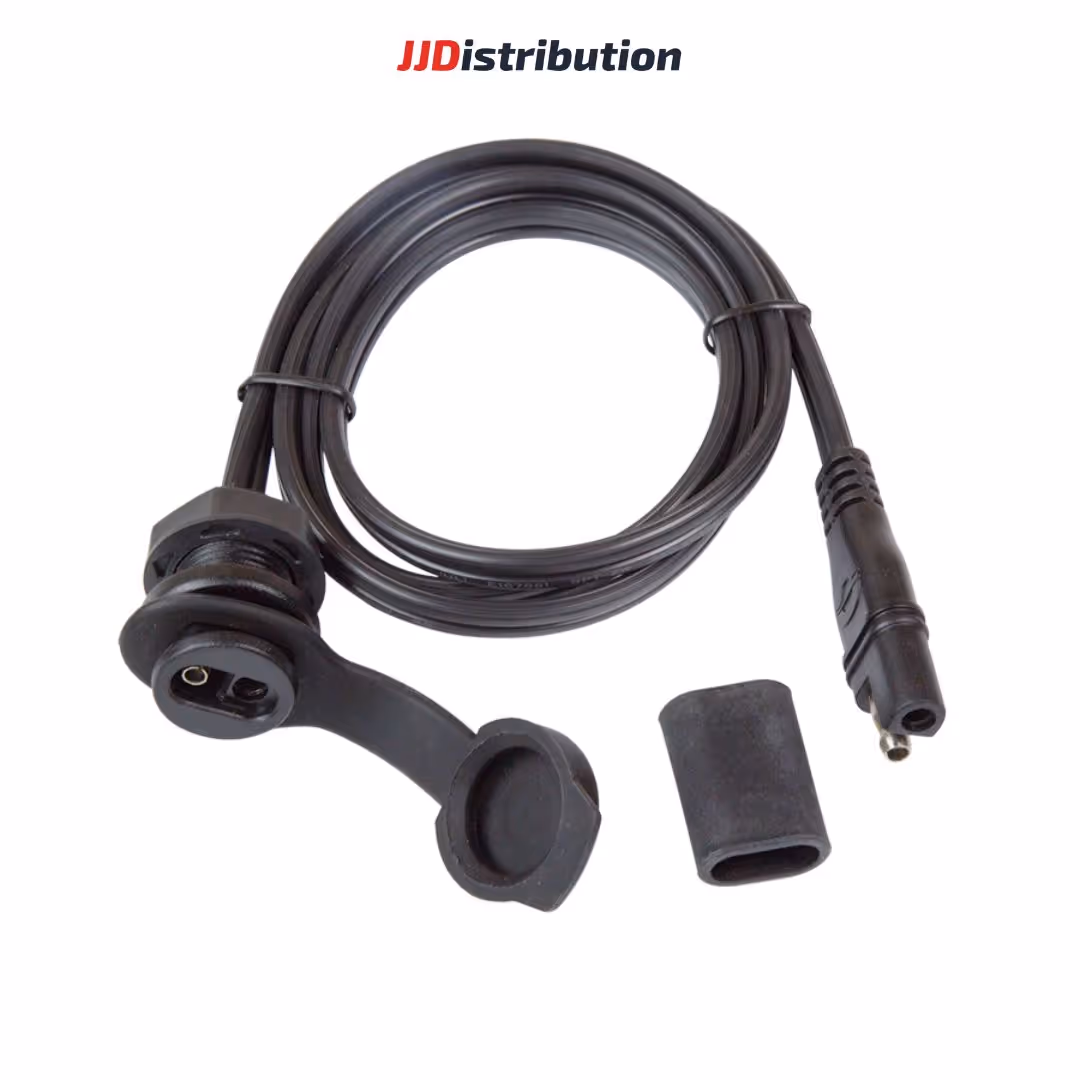

OptiMate O-40 Weatherproof Panel-Mount SAE Socket
SKU:
O40

OptiMate O-40 Weatherproof Panel-Mount SAE Socket

(100 reviews)
Retail Price:
đ551.000
Purchase on Shopee

Product Description

OptiMate CABLE O-40 is a panel-mounted SAE socket that creates a weatherproof SAE connection point on the outside of your vehicle, allowing you to plug in a charger or accessory without having to open the seat, battery cover, or hood.

Key Features

  • Drop-in replacement for the BMW, Triumph & Ducati 12V DIN ‘Hella’ socket.
  • SAE socket is panel-mounted flush into the vehicle surface (Ø18 mm drilled hole), securely fixed and easy to use.
  • Rubber seal keep the connector safe for outdoor use.
  • Standard SAE connection compatible with most OptiMate chargers and SAE-equipped accessories.
  • Rated for outdoor use, operates reliably at temperatures down to −40 °C / −40 °F

Use Cases

Perfect for motorcycles, cars, etc., wanting an external SAE port for quick charging.

Technical Specifications

Specification Details
Length 100 cm
Connectors SAE → SAE
Cable rating 18 AWG (0.82 mm²), SPT-2W
Current rating 5 A (max. 7 A)
Use −40 °C / −40 °F very low temperature
Style Front mount, rear fastener, for panel from 1 mm / 0.040″ thickness. Includes in-line rubber seal for OptiMATE SAE connector.
Warranty 3-year limited replacement warranty
